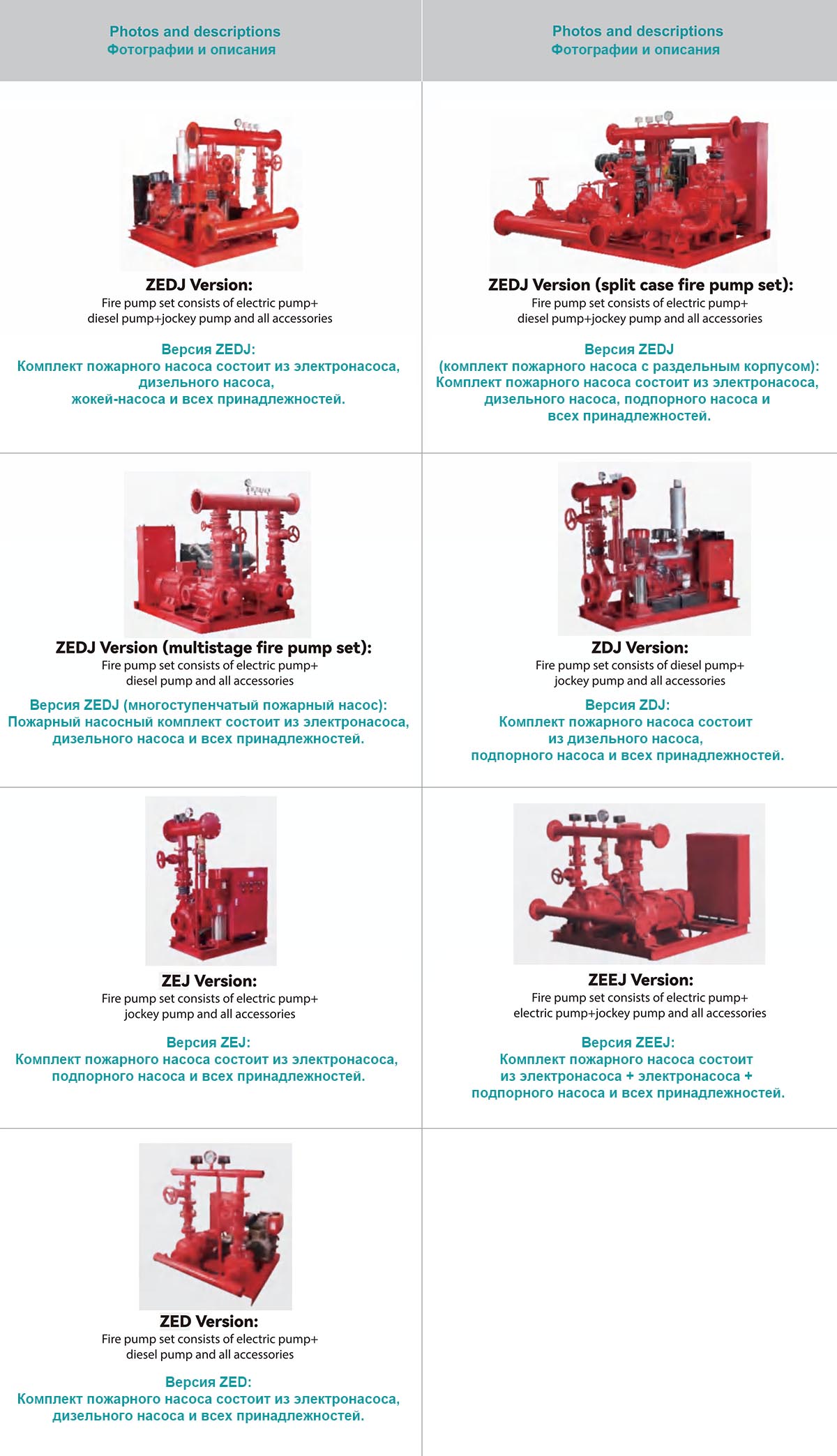

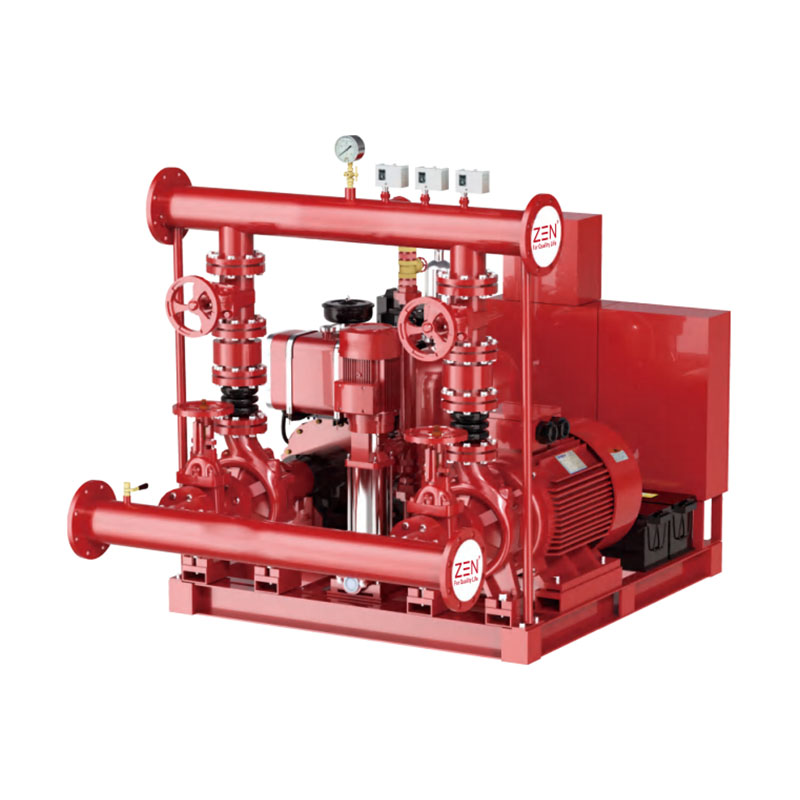

Как профессиональный производитель, компания Zen стремится предоставить вам высококачественную модель Система пожаротушения ZEDJ. Наши пожарные насосы рассчитаны на весь срок службы, и максимальная надежность всегда является нашим главным приоритетом.
1. Компоненты закреплены на стальной каркасной конструкции.
2. Ciascun controller dispone della propria linea di misurazione della pressione.
3. La linea di aspirazione non deve includere un filtro.
4. Valvola di ritegno e valvola a farfalla sulla linea di scarico.
5. La certificazione NFPA 20 non consente l'aspirazione negativa per le pompe ad aspirazione finale e con corpo diviso.
Un modello di alta qualità del sistema antincendio ZEDJ è offerto dal produttore cinese ZEN. Produciamo pompe antincendio nel rigoroso rispetto degli standard internazionali, impegnandoci a fornire prodotti di alta qualità ai clienti di tutto il mondo. Contattaci in qualsiasi momento.

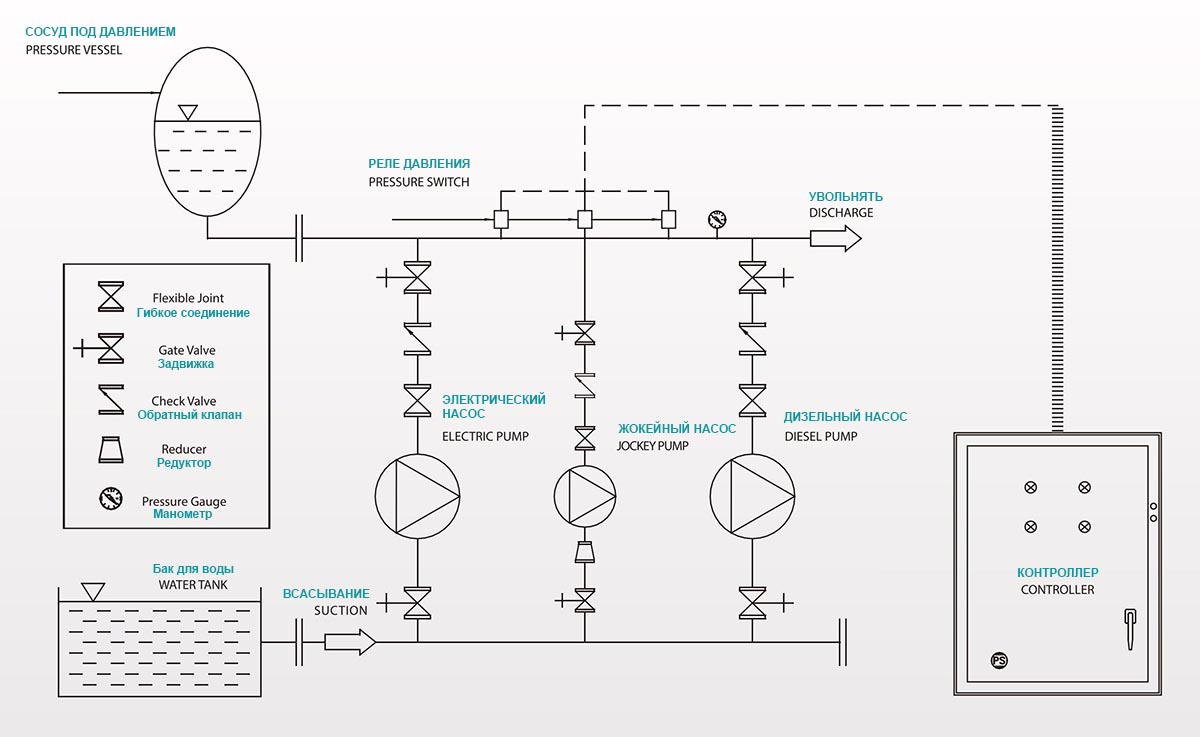

Когда давление падает ниже заданного значения, по сигналу реле давления запускается жокей и работает в течение 10 минут, пока давление в системе не достигнет заданного значения. Если давление продолжает падать, первым запускается основной насос. Если давление в системе не может обеспечить подачу и давление продолжает падать, включается резервный насос.
 |

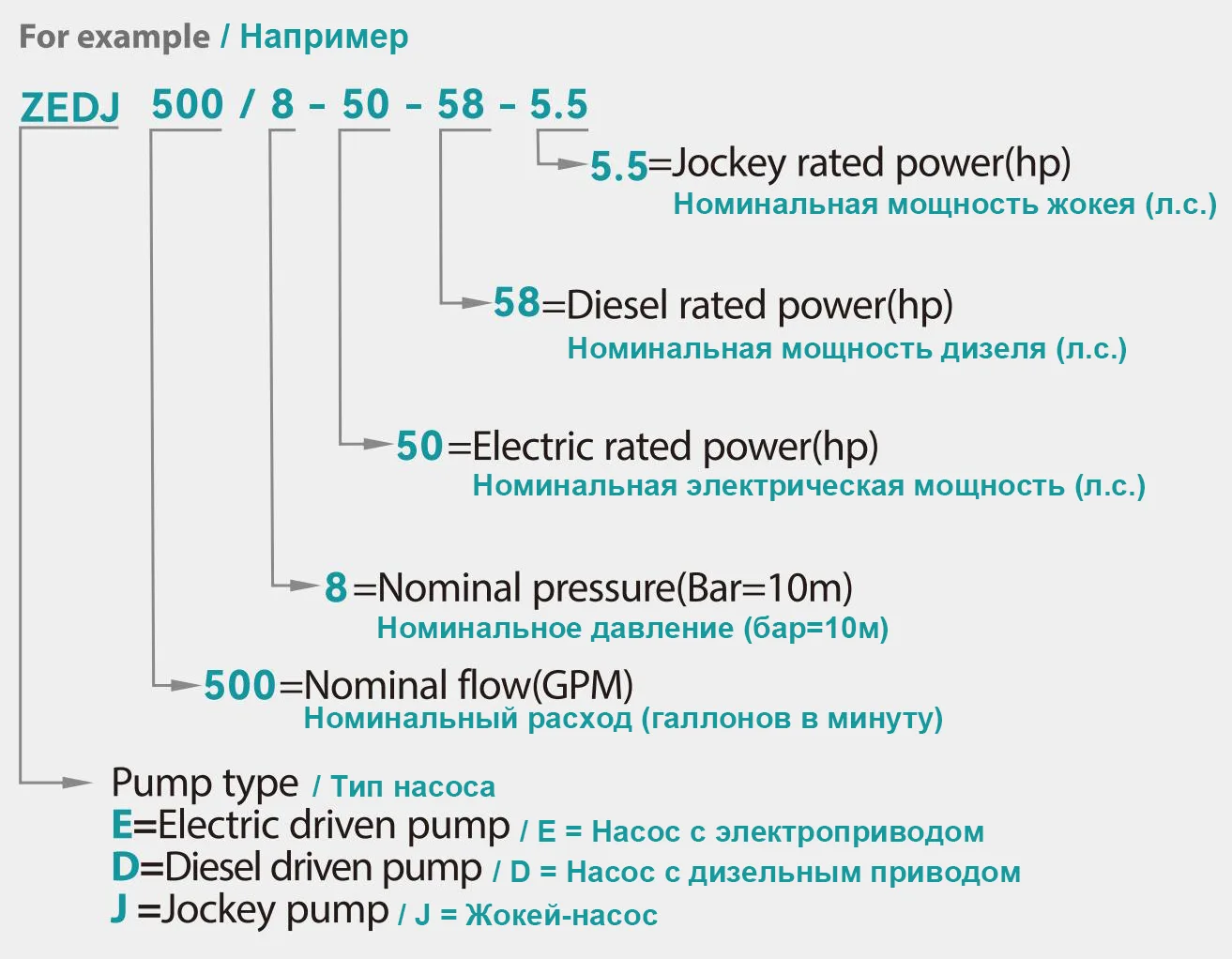

Q | H | Электрический | Diesel | Fantino | ||
| Вариант 1 | Opzione 2 | Вариант 1 | Opzione 2 | ||||
| Strettamente connesso | Coniugato separato | Tipo di frizione | Girante in plastica | Girante SS304 | |||
| GPM | Бар |
 |
 |
 |
 |
 |
|
| ZEDJ 50/6-5.5-8.6-2 | 50 | 6 | ZST 32-250/557.5HP | XAD32-250/557.5HP | SD 32-250/558.6HP | SVP4-6/2HP | CDL(F)1-15/1HP |
| ZEDJ 50/7-7.5-10-2 | 50 | 7 | ZST 32-250/75 10HP | XAD32-250/75 10HP | SD 32-250/75 10HP | SVP4-6/2HP | CDL(F)1-15/1HP |
| ZEDJ 50/8-10-12-3 | 50 | 8 | ZST 32-250/11015HP | XAD32-250/110 15HP | SD 32-250/11012HP | SVP4-10/3HP | CDL(F)1-15/1HP |
| ZEDJ 50/9-10-27-3 | 50 | 9 | ZST 32-250/150 20HP | XAD32-250/150 20HP | SD32-250/150 27HP | SVP4-10/3HP | CDL(F)1-17/1,5 CV |
| ZEDJ 100/7-10-10-2 | 100 | 6-7 | ZST 32-250/75 10HP | XAD32-250/75 10HP | SD 32-250/75 10HP | SVP4-6/2HP | CDL(F)2-11/1,5 CV |
| ZEDJ 100/8-15-27-3 | 100 | 8 | ZST 32-250/150 20HP | XAD32-250/150 20HP | SD32-250/150 27HP | SVP4-10/3HP | CDL(F)2-13/2HP |
| ZEDJ 100/9-17.5-27-3 | 100 | 9 | ZST 40-250/185 25 CV | XAD40-250/185 25HP | SD40-250/185 27HP | SVP4-10/3HP | CDL(F)2-13/2HP |
| ZEDJ 120/7-10-12-3 | 120 | 7 | ZST 32-250/75D 10HP | XAD32-250/75H 10HP | SD 32-250/75H 12HP | SVP4-10/3HP | CDL(F)2-13/2HP |
| ZEDJ 150/7-15-12-3 | 150 | 7 | ZST 40-250/110 15HP | XAD40-250/110 15HP | SD40-250/110 12HP | SVP4-10/3HP | CDL(F)4-10/3HP |
| ZEDJ 200/6-20-27-3 | 200 | 6 | ZST 50-250/150 20HP | XAD50-250/150 20HP | SD 50-250/150 27HP | SVP4-10/3HP | CDL(F)4-10/3HP |
| ZEDJ 200/7-25-27-3 | 200 | 7 | ZST 50-250/185 25HP | XAD50-250/185 25HP | SD 50-250/185 27 CV | SVP4-10/3HP | CDL(F)4-10/3HP |
| ZEDJ 200/8-30-32-3 | 200 | 8 | ZST 50-250/220 30CV | XAD50-250/220 30HP | SD 50-250/220 32 CV | SVP4-10/3HP | CDL(F)4-12/3HP |
| ZEDJ 200/9-40-38-4 | 200 | 9 | - | XAD50-250/300 40HP | SD 50-250/300 38HP | SVP4-12/4HP | CDL(F)4-123/HP |
| ZEDJ 200/10-50-58-4 | 200 | 10 | XAD50-315/37050HP | SD 50-315/370 58 CV | SVP6-8/4HP | CDL(F)4-14/4HP | |
| ZEDJ 250/7-25-27-4 | 250 | 7 | ZST 50-250/18525HP | XAD50-250/185 25HP | SD 50-250/185 27 CV | SVP6-8/4HP | CDL(F)4-12/3HP |
| ZEDJ 300/6-25-27-4 | 300 | 6 | ZST 50-250/185 25HP | XAD50-250/185 25HP | SD 50-250/185 27 CV | SVP6-8/4HP | CDL(F)8-6/3HP |
| ZEDJ 300/7-30-32-4 | 300 | 7 | ZST 50-250/220 30CV | XAD50-250/220 30HP | SD 50-250/220 32 CV | SVP6-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 300/8-40-38-4 | 300 | 8 | - | XAD50-250/300 40HP | SD 50-250/300 38HP | SVP8-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 300/10-50-58-5.5 | 300 | 9-10 | - | XAD50-315/370 50HP | SD 50-315/370 58 CV | SVP8-10/5,5 HP | CDL(F)8-12/5.5HP |
| ZEDJ 350/7-30-32-4 | 350 | 7 | ZST 50-250/220 30CV | XAD50-250/220 30HP | SD 50-250/220 32 CV | SVP8-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 400/6-30-32-4 | 400 | 6 | ZST 65-250/220 30CV | XAD65-250/220 30HP | SD 65-250/220 32HP | SVP8-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 400/7-40-38-5.5 | 400 | 7 | ZST 65-250/300 40CV | XAD65-250/300 40HP | SD 65-250/300 38 CV | SVP8-10/5,5 HP | CDL(F)8-8/4HP |
| ZEDJ 400/8-50-58-5.5 | 400 | 8 | ZST 65-250/370 50CV | XAD65-250/370 50HP | SD 65-250/370 58 CV | SVP8-10/5,5 HP | CDL(F)8-10/5,5 CV |
| ZEDJ 400/9-60-61-7.5 | 400 | 9 | ZST 65-315/450 60CV | XAD65-315/450 60HP | SD 65-315/450 61 CV | SVP12-6/7.5HP | CDL(F)8-12/5.5HP |
| ZEDJ 500/7-40-38-5.5 | 500 | 6-7 | ZST 65-250/300 40CV | XAD65-250/300 40HP | SD 65-250/300 38 CV | SVP12-4/5,5 HP | CDL(F)12-8/7,5 CV |
| ZEDJ 500/8-50-58-7.5 | 500 | 8 | ZST 65-250/370 50CV | XAD65-250/370 50HP | SD65-250/37058HP | SVP12-6/7.5HP | CDL(F)12-8/7,5 CV |
| ZEDJ 500/9-60-61-7.5 | 500 | 9 | ZST 65-315/450 60CV | XAD65-315/450 60HP | SD 65-315/450 61 CV | SVP12-6/7.5HP | CDL(F)12-9/7,5 CV |
| ZEDJ 500/11-75-75-7.5 | 500 | 10-11 | ZST 65-315/550 75HP | XAD65-315/550 75 CV | SD 65-315/550 75HP | SVP12-6/7.5HP | CDL(F)12-12/10HP |
| ZEDJ 500/13-100-100-15 | 500 | 12-13 | ZST 65-315/750 100HP | XAD65-315/750 100 CV | SD65-315/750 100HP | - | CDL(F)12-14/15HP |
|
|
Q | H | Электрический | Diesel | Fantino | ||
| Вариант 1 | Opzione 2 | Вариант 1 | Opzione 2 | ||||
| Strettamente connesso | Coniugato separato | Tipo di frizione | Girante in plastica | Girante SS304 | |||
| GPM | Бар |
|
|
|
|
|
|
| ZEDJ 500/14-125-125-15 | 500 | 14 | ZST 65-315/900 125 CV | XAD65-315/900 125HP | SD 65-315/900 125HP | - | CDL(F)12-14/15HP |
| ZEDJ 750/7-60-61-10 | 750 | 6-7 | ZST 80-250/450 60HP | XAD80-250/450 60HP | SD 80-250/450 61HP | - | CDL(F)16-8/10HP |
| ZEDJ 750/8-75-75-10 | 750 | 8 | ZST 80-250/550 75HP | LIMITE 80-250/550 75HP | SD80-250/550 75 CV | - | CDL(F)16-8/10HP |
| ZEDJ750/9-100-100-10 | 750 | 9 | - | XAD 80-250/750 100HP | SD80-250/750 100HP | - | CDL(F)16-8/10HP |
| ZEDJ 750/11-100-100-12 | 750 | 10-11 | ZST 80-315/750 100 CV | XAD 80-315/750 100HP | SD80-315/750 100HP | - | CDL(F)16-10/15HP |
| ZEDJ 50/13-125-125-15 | 750 | 12-13 | ZST 80-315/900 125 CV | LIMITE 80-315/900 125CV | SD 80-315/900 125HP | - | CDL(F)16-12/15HP |
| ZEDJ 50/14-150-150-15 | 750 | 14 | - | XAD 80-315/1100 150HP | SD80-315/1100 150CV | - | CDL(F)16-14/20HP |
| ZEDJ 1000/8-100-100-10 | 1000 | 8 | ZST 100-250/750 100CV | XAD 100-250/750 100HP | SD 100-250/750 100HP | - | CDL(F))20-8/15HP |
| ZEDJ 1000/9-125-125-12 | 1000 | 9 | ZST 100-250/900 125CV | XAD 100-250/900 125HP | SD 100-250/900 125HP | - | CDL(F)20-10/15HP |
| ZEDJ 1000/11-150-150-12 | 1000 | 10-11 | ZST 100-315/1100 150 CV | XAD100-315/1100 150 CV | SD 100-315/1100 150 CV | - | CDL(F)20-10/15HP |
| ZEDJ 1000/12-180-170-15 | 1000 | 12 | ZST 100-315/1320 180HP | LIMITE 100-315/1320 180HP | SD 100-315/1320 170HP | - | CDL(F)20-14/20HP |
| ZEDJ 1000/14-220-225-20 | 1000 | 13-14 | ZST 100-315/1600 220HP | LIMITE 100-315/1600 220HP | SD 100-315/1600 225 CV | - | CDL(F)20-14/20HP |
| ZEDJ 1250/8-150-150-12 | 1250 | 8 | - | XAD 125-250/1100 150HP | SD 125-250/1100 150 CV | - | CDL(F)32-60/15HP |
| ZEDJ 1250/9-180-170-15 | 1250 | 9 | - | LIMITE 125-315/1320 180CV | SD 125-315/1320 170HP | - | CDL(F)32-60/15HP |
| ZEDJ 1250/11-220-225-15 | 1250 | 10-11 | - | LIMITE 125-315/1600 220CV | SD 125-315/1600 225 CV | - | CDL(F)32-80/20HP |
| ZEDJ 1250/12-250-270-20 | 1250 | 12 | - | XAD 125-315/1850 250HP | SD 125-315/1850 270 CV | - | CDL(F) 32-80/20HP |
| ZEDJ 1250/13-270-270-25 | 1250 | 13 | - | XAD 125-315/2000 270HP | SD 125-315/2000 270 CV | - | CDL(F)32-100/25HP |
| ZEDJ 1500/8-180-170-15 | 1500 | 8 | - | LIMITE 125-250H/1320 180HP | SD125-250H/1320 170CV | - | CDL(F))32-80/20HP |
| ZEDJ 1500/9-180-170-20 | 1500 | 9 | - | LIMITE 125-315/1320 180CV | SD 125-315/1320 170HP | - | CDL(F)32-80/20HP |
| ZEDJ 1500/10-220-225-20 | 1500 | 10 | - | LIMITE 125-315/1600 220CV | SD 125-315/1600 225 CV | - | CDL(F)32-80/20HP |
| ZEDJ 1500/12-250-270-25 | 1500 | 11-12 | - | XAD 125-315/1850 250HP | SD 125-315/1850 270 CV | - | CDL(F))32-100/25HP |
| ZEDJ 1500/13-270-270-25 | 1500 | 13 | - | XAD125-315/2000 270 CV | SD 125-315/2000 270 CV | - | CDL(F)32-100/25HP |
| ZEDJ 2000/8-220-225-25 | 2000 | 8 | - | LIMITE 150-250/1600 220CV | SD 150-250/1600 225 CV | - | CDL(F)45-50/25HP |
| ZEDJ 2000/9-270-270-25 | 2000 | 9 | - | LIMITE 150-250/2000 270CV | SD 150-250/2000 270HP | - | CDL(F)45-50/25HP |
| ZEDJ 2000/10-340-340-30 | 2000 | 10 | - | LIMITE 150-315/2500 340CV | SD 150-315/2500 340 CV | - | CDL(F)45-60/30HP |
| ZEDJ 2000/13-430-410-40 | 2000 | 11-13 | - | XAD 150-315/3150 430HP | SD 150-315/3150 410 CV | - | CDL(F)45-70/40HP |
| ZEDJ 2500/8-220-225-30 | 2500 | 8 | - | LIMITE 150-250/1600 220CV | SD 150-250/1600 225 CV | - | CDL(F)64-40/30HP |
| ZEDJ 2500/9-270-270-40 | 2500 | 9 | - | LIMITE 150-250/2000 270CV | SD 150-250/2000 270HP | - | CDL(F)64-50/40HP |
| ZEDJ 2500/10-340-340-40 | 2500 | 10 | - | XAD150-315/2500 340HP | SD 150-315/2500 340 CV | - | CDL(F)64-50/40HP |
| ZEDJ 2500/12-430-410-40 | 2500 | 11-12 | - | XAD150-315/3150 430HP | SD 150-315/3150 410 CV | - | CDL(F)64-60-2/40HP |

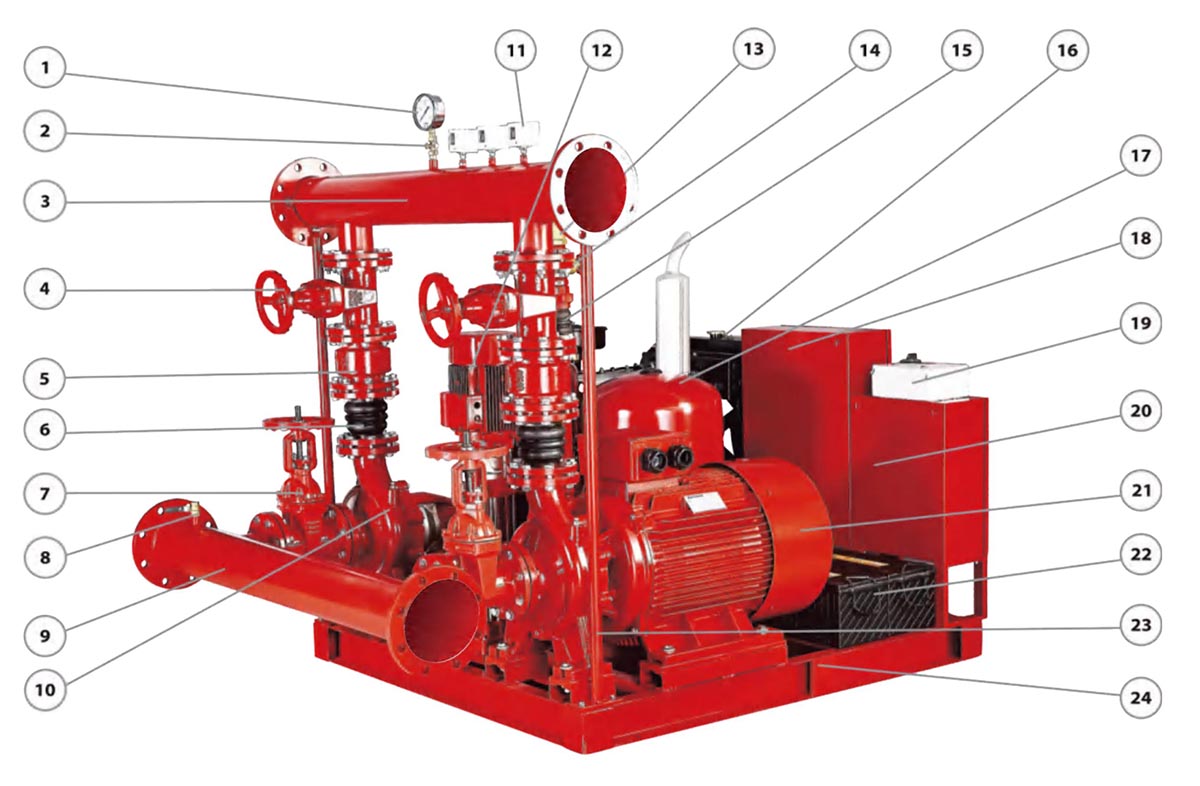

| № | Descrizione | Материал |
| 1 | Манометр | Ci sono 0-16 |
| 2 | Valvola di sicurezza | Ottone |
| 3 | Напорный трубопровод | Acciaio al carbonio |
| 4 | Задвижка | Ferro malleabile |
| 5 | Обратный клапан | Ferro malleabile |
| 6 | Connessione flessibile | Gomma |
| 7 | Valvola OS&Y | Ferro malleabile |
| 8 | Valvola di sicurezza | Ottone |
| 9 | Всасывающий трубопровод | Acciaio al carbonio |
| 10 | Pompa diesel | Alimentazione di riserva |
| 11 | Pressostato | Ci sono 0-16 |
| 12 | Pompa da fantino | Alimentazione di riserva |
| 13 | Жокей-обратный клапан | Ottone |
| 14 | Жокей-запорный клапан | Ottone |
| 15 | Connessione flessibile | Gomma |
| 16 | Дизельный двигатель | Внутреннего сгорания |
| 17 | Напорный бак | Чугун / мембрана EPDM |
| 18 | Controller elettrico | Avviamento diretto/Stella-Triangolo |
| 19 | Controllore del fantino | Прямой пуск |
| 20 | Дизельный контроллер | Прямой пуск |
| 21 | Pompa elettrica | Основной источник |
| 22 | Accumulatore | Основной/Резервный |
| 23 | Опорный стержень | Ghisa |
| 24 | Основание | Ghisa |
| Flusso della pompa | Diametri minimi dei tubi (nominali) | ||
| GPM | m³/h | Aspirazione | Congedare |
| 25 | 6 | 1"-DN25 | 1"-DN25 |
| 50 | 11 | 11/2"-DN40 | 11/4"-DN32 |
| 100 | 23 | 2"-DN50 | 2"-DN50 |
| 150 | 34 | 21/2"-DN65 | 21/2"-DN65 |
| 200 | 45 | 3"-DN80 | 3"-DN80 |
| 250 | 57 | 4"-DN100 | 3"-DN80 |
| 300 | 68 | 4"-DN100 | 4"-DN100 |
| 400 | 91 | 4"-DN100 | 4"-DN100 |
| 450 | 102 | 5"-DN125 | 5"-DN125 |
| 500 | 114 | 5"-DN125 | 5"-DN125 |
| Flusso della pompa | Diametri minimi dei tubi (nominali) | ||
| GPM | m³/h | Aspirazione | Congedare |
| 750 | 170 | 6"-DN150 | 6"-DN150 |
| 1000 | 227 | 8"-DN200 | 6"-DN150 |
| 1250 | 284 | 8"-DN200 | 8"-DN200 |
| 1500 | 341 | 8"-DN200 | 8"-DN200 |
| 2000 | 455 | 10"-DN250 | 10"-DN250 |
| 2500 | 568 | 10"-DN250 | 10"-DN250 |
| 3000 | 682 | 12"-DN300 | 12"-DN300 |
| 3500 | 795 | 12"-DN300 | 12"-DN300 |
| 4000 | 909 | 14"-DN350 | 12"-DN300 |
| 4500 | 1023 | 16"-DN400 | 14"-DN350 |
| 5000 | 1136 | 16"-DN400 | 14"-DN350 |
